3D render of the Jet Engine Desk Fan: a white engine with a dark fan on a black base
Free 3D model

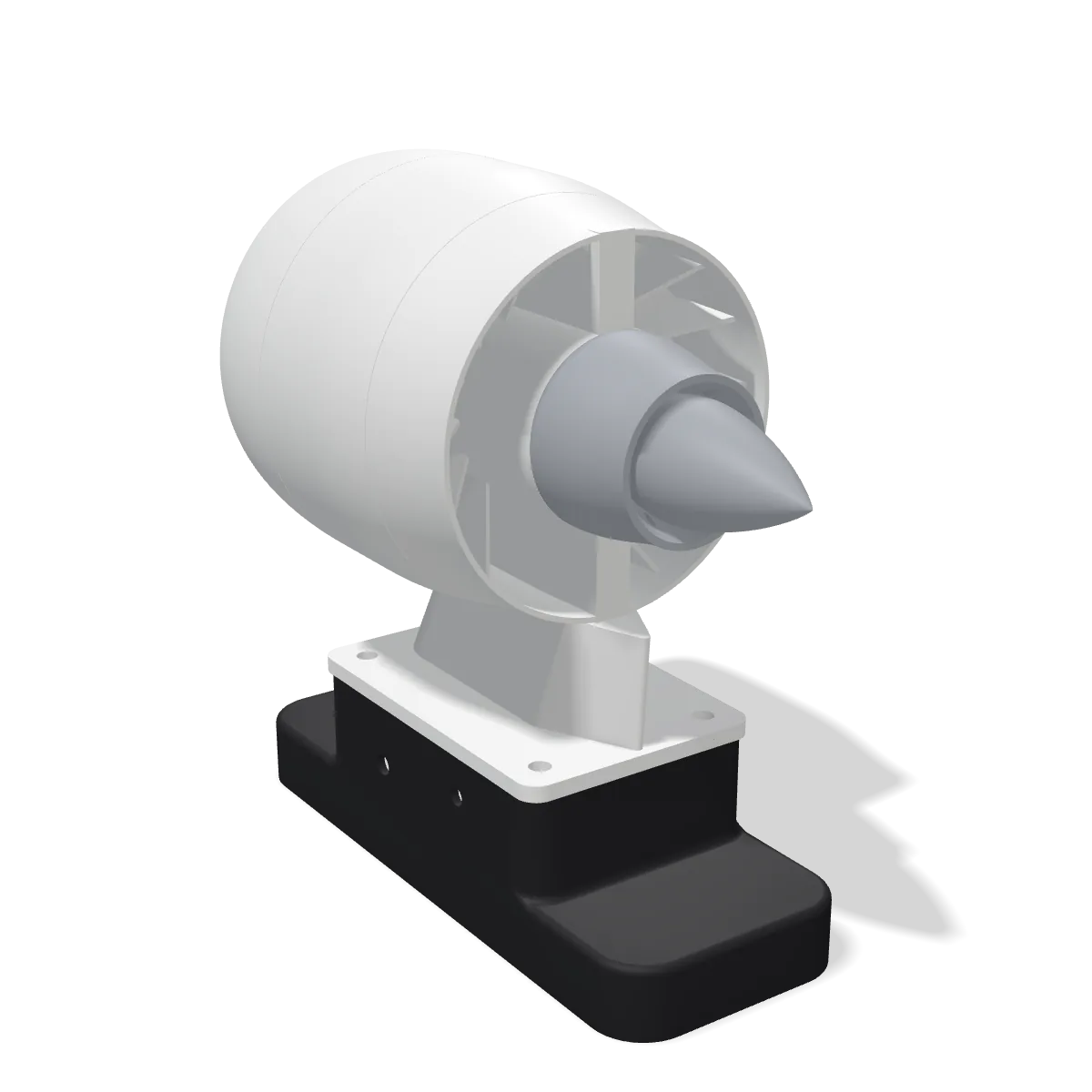

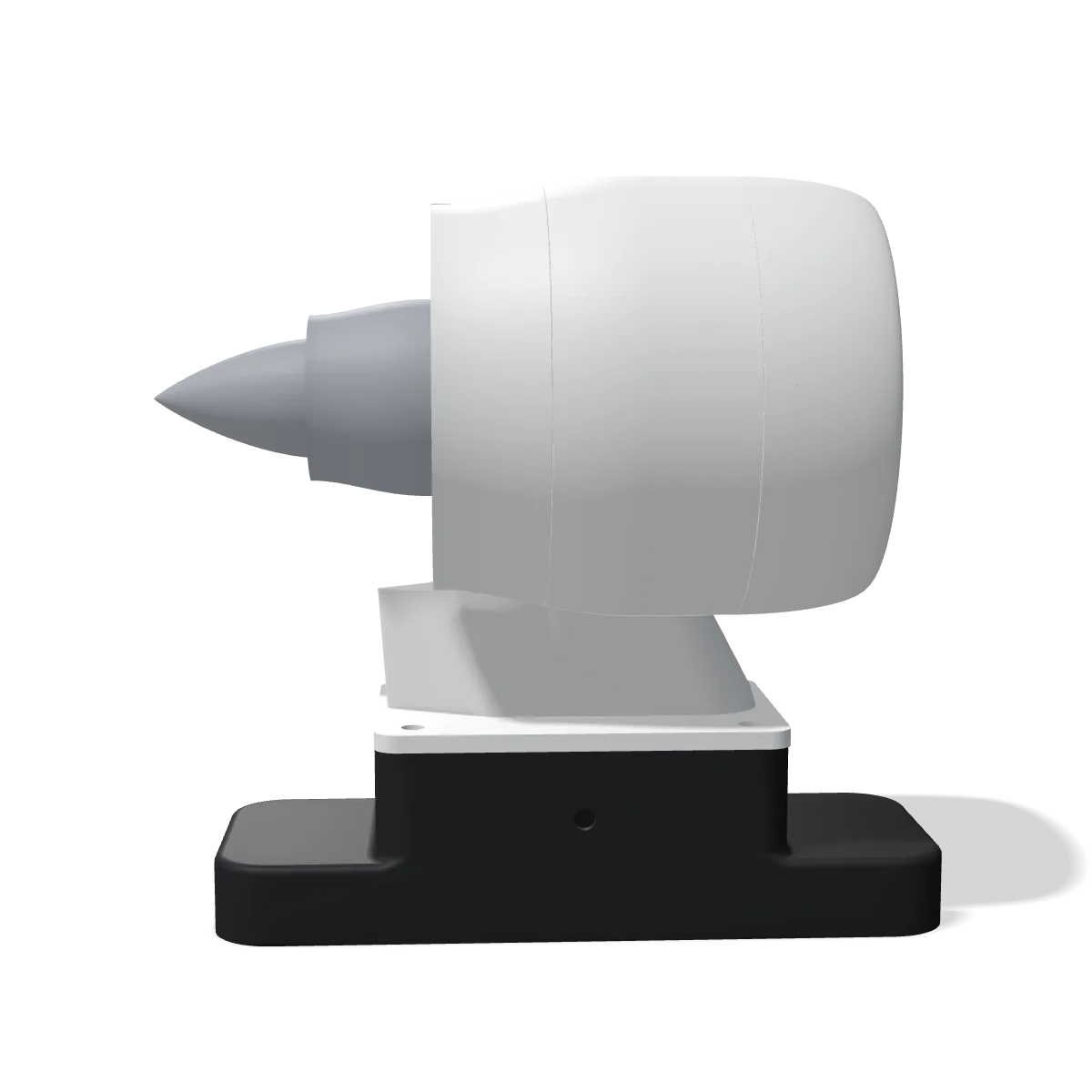

Jet Engine Desk Fan

A turbofan for your desk, with 20 swept fan blades, a spinner with the classic spiral, stator vanes and a tail cone. It stands on the base of the Turbo Desk Fan and uses the same motor, coupling and speed controller, so you can swap one for the other. Every engine part prints without supports.

  • 7printed parts
  • 27 × 15 × 26 cmassembled (L × W × H)
  • ≈ 0.8 kgfilament in total
  • 250 mmbed length for the base; the engine parts fit a 160 mm printer
Download all files ZIP · 2.7 MB

Free for personal use under CC BY-NC 4.0: print it, remix it and share it with credit to Shapekit. Please don't sell the files or the prints.

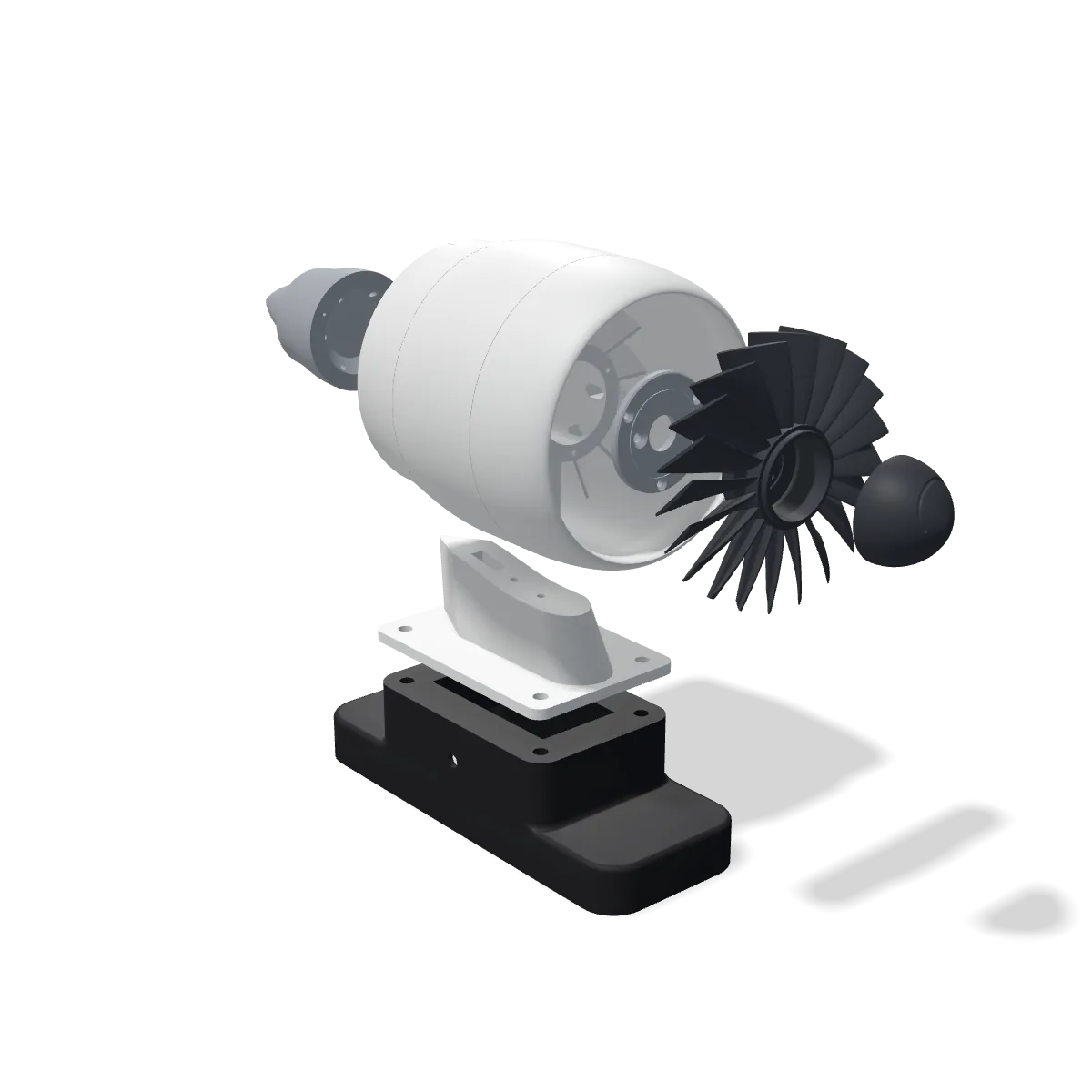

Take it apart in 3D · Parts · How to build it

In 3D

Turn it, take it apart

Every part as you print it. Pick colours to see what your filament will look like.

The 3D model (6.9 MB) loads when you get here.

Preview colours

Engine
Fan and tail
Base

Drag to rotate · scroll or pinch to zoom

In the download

7 parts, ready to print

Every STL is already placed the right way up. Download them all at once, or one by one.

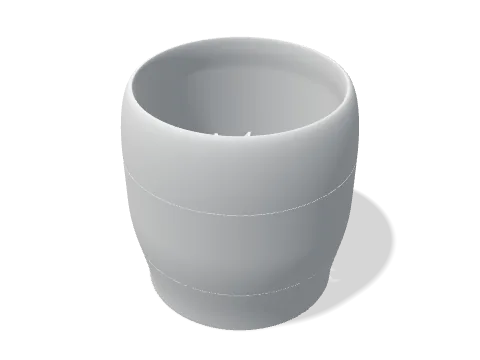

Nacelle

Inlet, fan case and bypass duct in one piece, with the stator vanes and a Ø42.7 mm motor sleeve in the core. Vents in the core let the motor breathe; the wires leave through the lower fairing.

Size
152 × 152 × 150 mm
Print
Back end on the bed, inlet up. No supports.
Filament
≈ 432 g
STL 2.6 MB

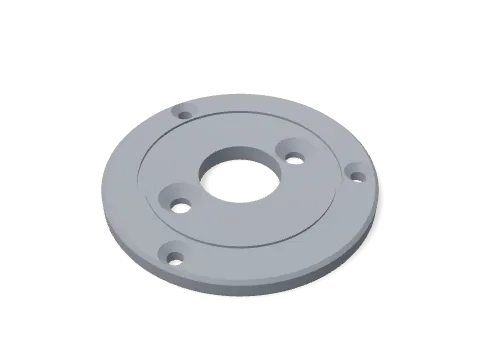

Motor plate

Screws to the motor's front face (2 × M4 × 8 countersunk) and to the front of the core (3 × M3 × 12 countersunk), so the motor sits at exactly the right depth.

Size
59 × 59 × 4 mm
Print
Countersinks up. No supports.
Filament
≈ 10 g
STL 0.2 MB

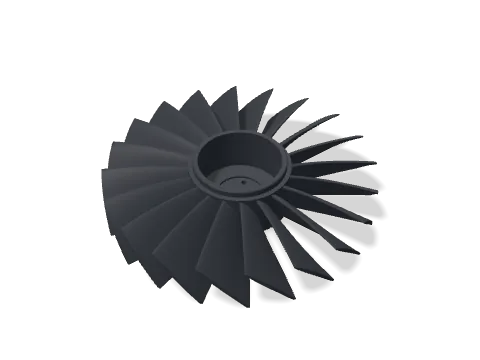

Fan

20 swept blades on a hub that takes a 5 mm flange coupling (4 × M3 × 6). It goes in through the inlet; the set screw is reached through the open front of the hub.

Size
128 × 128 × 26 mm
Print
Back of the hub on the bed. No supports; good part cooling makes the blades cleaner.
Filament
≈ 80 g
STL 1.7 MB

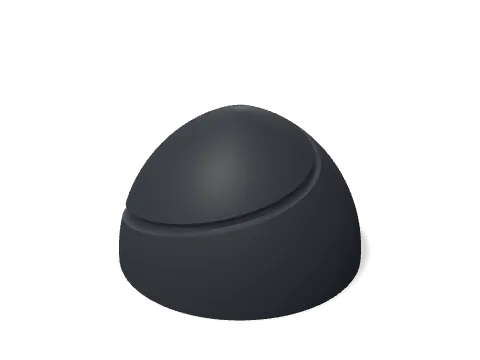

Spinner

The nose cone with the classic spiral. It presses onto the ring at the front of the fan hub.

Size
48 × 48 × 30 mm
Print
Flat back on the bed, tip up. No supports.
Filament
≈ 15 g
STL 0.8 MB

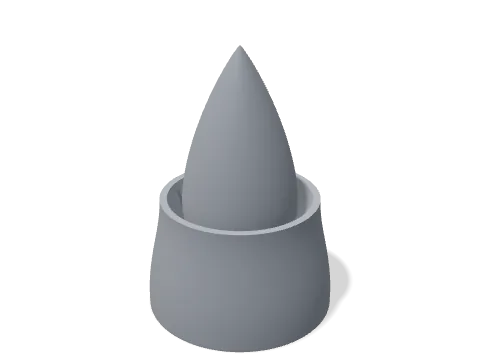

Tail

Core cowl, exhaust nozzle and tail cone, with an air chamber behind the motor and six vent holes that come out in the nozzle. Three filament pins hold it on the core.

Size
96 × 68 × 68 mm
Print
Front face on the bed. No supports.
Filament
≈ 57 g
STL 1.3 MB

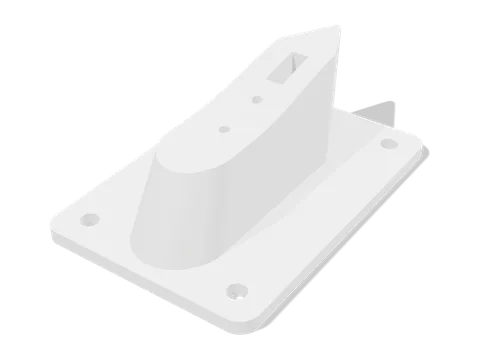

Pylon

Holds the engine on the base. The motor wires run down through it.

Size
140 × 96 × 49 mm
Print
Flange on the bed. No supports.
Filament
≈ 88 g
STL 0.1 MB

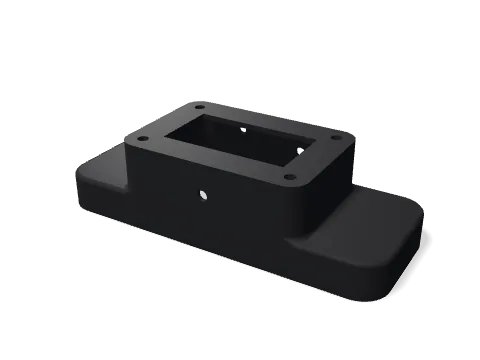

Base

The base of the Turbo Desk Fan, with the speed controller and the DC jack. Included in the ZIP.

Size
250 × 96 × 65 mm
Print
Upside down (top face on the bed), with supports.
Filament
≈ 162 g
STL 0.2 MB
Also needed

Parts you buy

  • A 775 DC motor, 12 V: body Ø42 × 66.7 mm, Ø5 mm shaft at least 15 mm long (17 mm is usual), two M4 holes 29 mm apart in the front face.
  • A rigid flange coupling for a 5 mm shaft: flange Ø22 mm with 4 × Ø3 mm holes on a Ø16 mm circle, Ø10 mm boss, 12 mm long, M3 set screw. Plus 4 × M3 × 6 pan-head screws.
  • 2 × M4 × 8 countersunk screws for the motor, 3 × M3 × 12 countersunk screws for the motor plate.
  • 2 × M4 × 25 pan-head screws to fix the nacelle on the pylon (they cut their own thread in Ø3.3 mm holes).
  • 4 × M6 × 20 bolts with 8 washers and 4 nuts for the Ø8 mm holes in the pylon flange.
  • The same electronics as the Turbo Desk Fan: a 12–24 V PWM speed controller with a knob (5 A or more, M7 pot bushing), a 12 V / 5 A adapter with a 5.5 × 2.1 mm plug and a DC-022B panel jack.
  • 3 pieces of 1.75 mm filament, 12 mm long, as pins for the tail; about 60 cm of two-core 0.5 mm² wire; a 1.5 mm hex key.
Print settings

Slicer settings

0.20 mmlayer height
3walls
15%gyroid infill
PLA or PETGmaterial

For a 0.4 mm nozzle. Filament amounts are estimates for these settings.

Assembly

How to build it

Print the parts

The engine parts need no supports. Print the fan with good part cooling for clean blades.

Prepare the motor

Solder about 60 cm of wire to the motor. Screw the motor plate onto its front face with 2 × M4 × 8 countersunk screws, the bearing boss in the centre hole.

Mount the motor

Feed the wires into the sleeve through the inlet and out of the channel in the lower fairing, then slide the motor in until the plate sits on the core. Fix the plate with 3 × M3 × 12 countersunk screws.

Close the tail

Push the three filament pins into the holes at the back of the core and press the tail on.

Fit the fan

Screw the flange coupling into the recess at the front of the fan hub with 4 × M3 × 6, boss pointing forward. Slide the fan through the inlet onto the shaft until the hub is about 2.5 mm from the motor plate and tighten the set screw with a 1.5 mm hex key through the open front of the hub. Turn it by hand: it should clear the fan case by about 1.5 mm all round.

Fit the spinner

Press the spinner onto the ring at the front of the hub. It pulls off again if you need to reach the set screw.

Mount the engine

Set the nacelle on the pylon, pass the wires down through it and screw the two M4 × 25 screws up through the pylon into the nacelle. Fit the controller and jack in the base (see the Turbo Desk Fan), then bolt the pylon onto the base with 4 × M6 × 20, washers and nuts from below.

Switch it on

Connect the motor to the speed controller and start slowly. If the air blows forwards, swap the two motor wires.

The fan spins fast. Only run it fully assembled, keep fingers out of the inlet and start at the lowest speed. Use a plug-in power adapter unless you know how to work safely with mains power.
