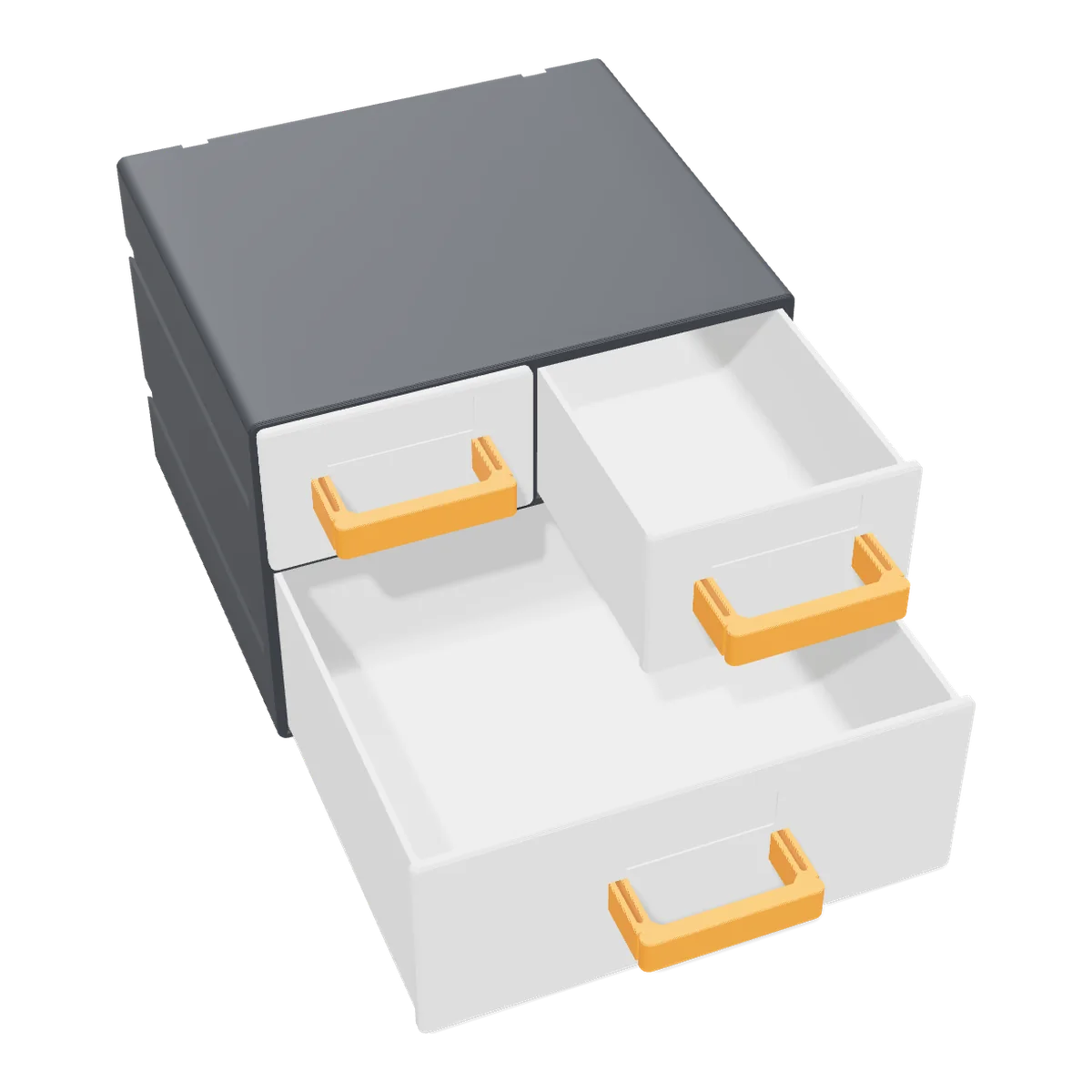

3D render of the Mini Drawer Cabinet: a graphite frame with three white drawers and orange handles, one drawer open
Free 3D model

Mini Drawer Cabinet

A desk organiser with two small drawers on top and a wide one below. Every drawer stops before it can fall out, the handles clip on in a second colour, and dovetail keys join cabinets on top of each other or side by side. No screws, no glue, and every part prints without supports.

  • 9printed parts
  • 15 × 15 × 11 cmassembled (L × W × H)
  • ≈ 0.6 kgfilament in total
  • 130 mmbuild height for the frame, which prints on its back
Download all files ZIP · 97 KB

Free for personal use under CC BY-NC 4.0: print it, remix it and share it with credit to Shapekit. Please don't sell the files or the prints.

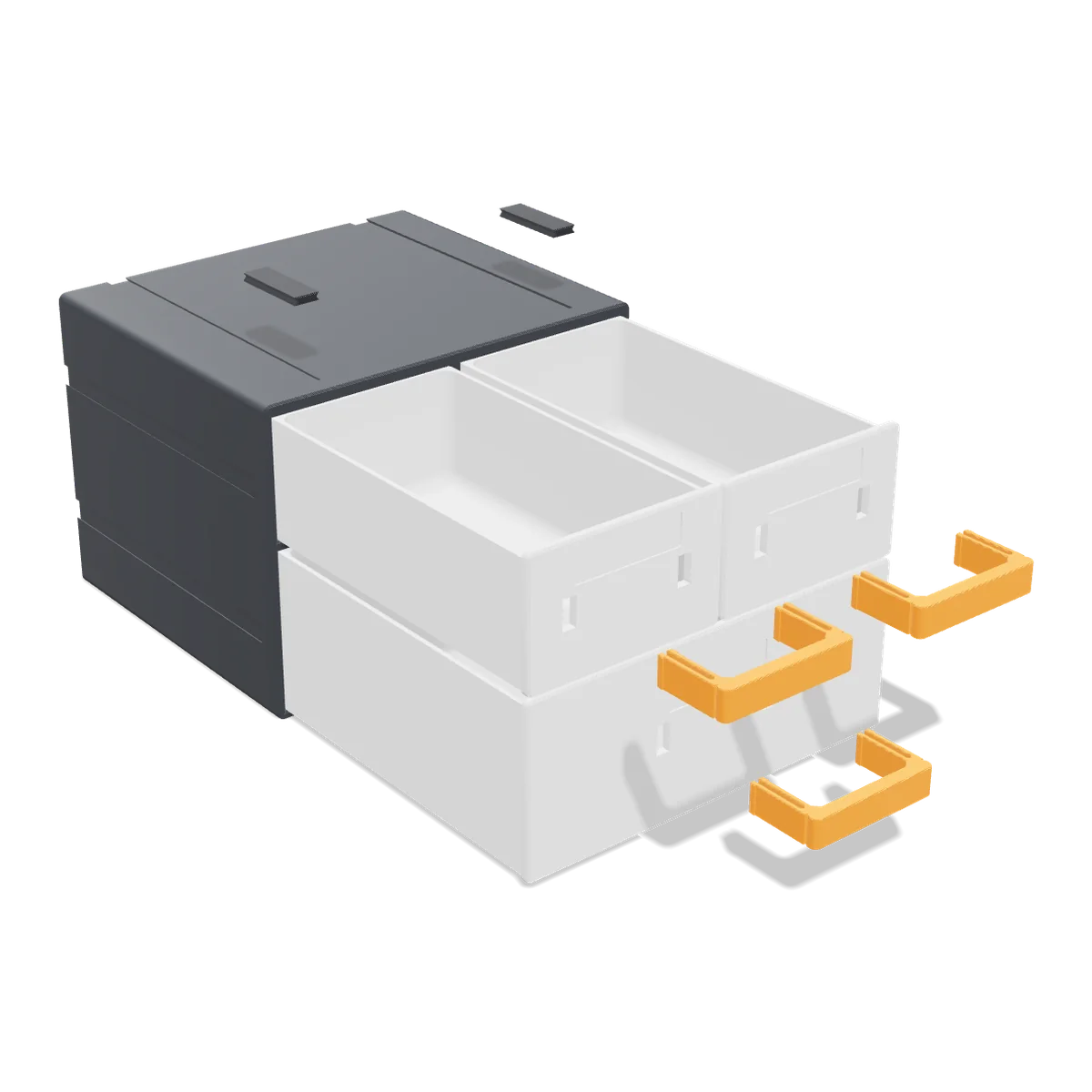

Take it apart in 3D · Parts · How to build it

In 3D

Turn it, take it apart

Every part as you print it. Pick colours to see what your filament will look like.

The 3D model (0.4 MB) loads when you get here.

Preview colours

Frame and keys
Drawers
Handles

Drag to rotate · scroll or pinch to zoom

In the download

5 parts, ready to print

Every STL is already placed the right way up. Download them all at once, or one by one.

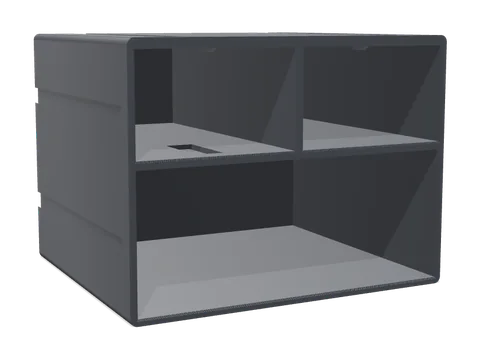

Frame

Two small openings over a wide one. A springy catch in the ceiling of each opening stops the drawer, and dovetail slots on all four sides take the link keys.

Size
150 × 130 × 112 mm
Print
On its back, front facing up. No supports.
Filament
≈ 337 g
STL 78 KB

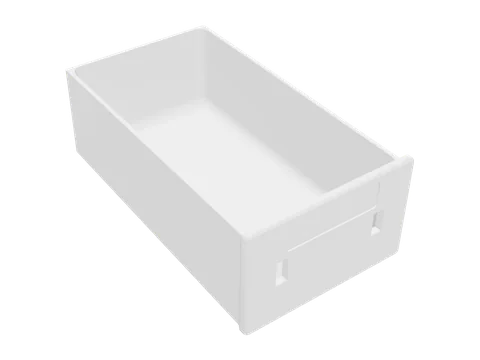

Small drawer × 2

66 × 125 mm inside and 40 mm deep, with rounded inside corners so small parts slide out easily, two slots for the handle and a recess for a label.

Size
130 × 73 × 45 mm
Print
Standing on its bottom. No supports.
Filament
≈ 127 g
STL 76 KB

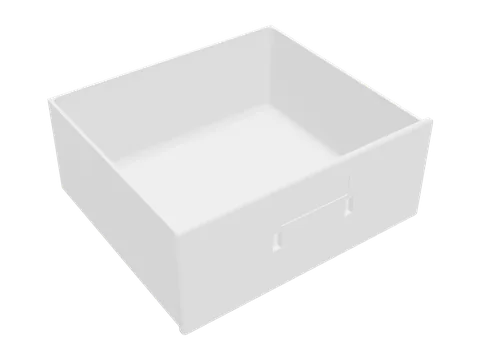

Big drawer

140 × 125 mm inside and 56 mm deep, with the same rounded corners, handle slots and label recess.

Size
147 × 130 × 61 mm
Print
Standing on its bottom. No supports.
Filament
≈ 129 g
STL 76 KB

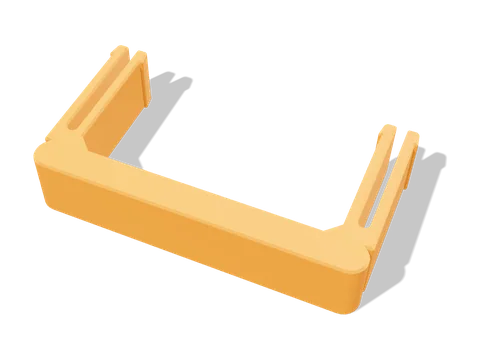

Handle × 3

A D-pull that clips through two slots in a drawer front. Pinch its tips together inside the drawer to take it off again.

Size
49 × 27 × 10 mm
Print
Flat, as it lies. No supports. Print it in a contrasting colour.
Filament
≈ 14 g
STL 0.2 MB

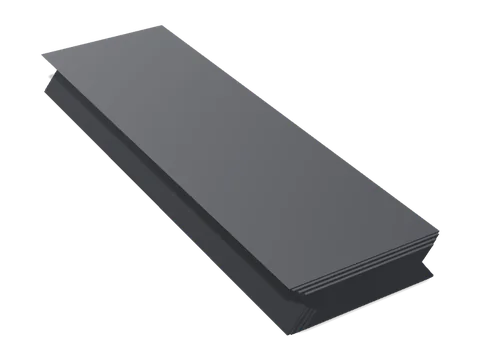

Link key × 2

A double dovetail that slides into the slots of two cabinets from the back and holds them together. Two per join; print more for a bigger wall of drawers.

Size
30 × 9 × 3 mm
Print
Flat on one of its wide faces. No supports.
Filament
≈ 2 g
STL 11 KB
Also needed

Parts you buy

  • Nothing else: no screws, no glue, no other hardware.
  • Optional: a label or a strip of paper, 40 × 10 mm, for the recess in each drawer front.
  • Optional: four small self-adhesive rubber bumpers under the frame, so it doesn't slide on the desk.
Print settings

Slicer settings

0.20 mmlayer height
3walls
15%gyroid infill
PLA or PETGmaterial

For a 0.4 mm nozzle. Filament amounts are estimates for these settings.

Assembly

How to build it

Print the parts

Nothing needs supports. The frame prints on its back with the front facing up and is 130 mm tall. Print the handles in a second colour if you like.

Check the catches

In the ceiling of each opening, near the front, hangs a tongue with a small nub. Push it up with a finger: it should spring back. Clean off any strings around it.

Clip on the handles

Push the two tips of a handle through the slots in a drawer front until the barbs click behind it.

Slide in the drawers

Push each drawer in. Its back wall lifts the nub on the way in, and the drawer closes against the frame. Pulled out, it stops at 108 mm.

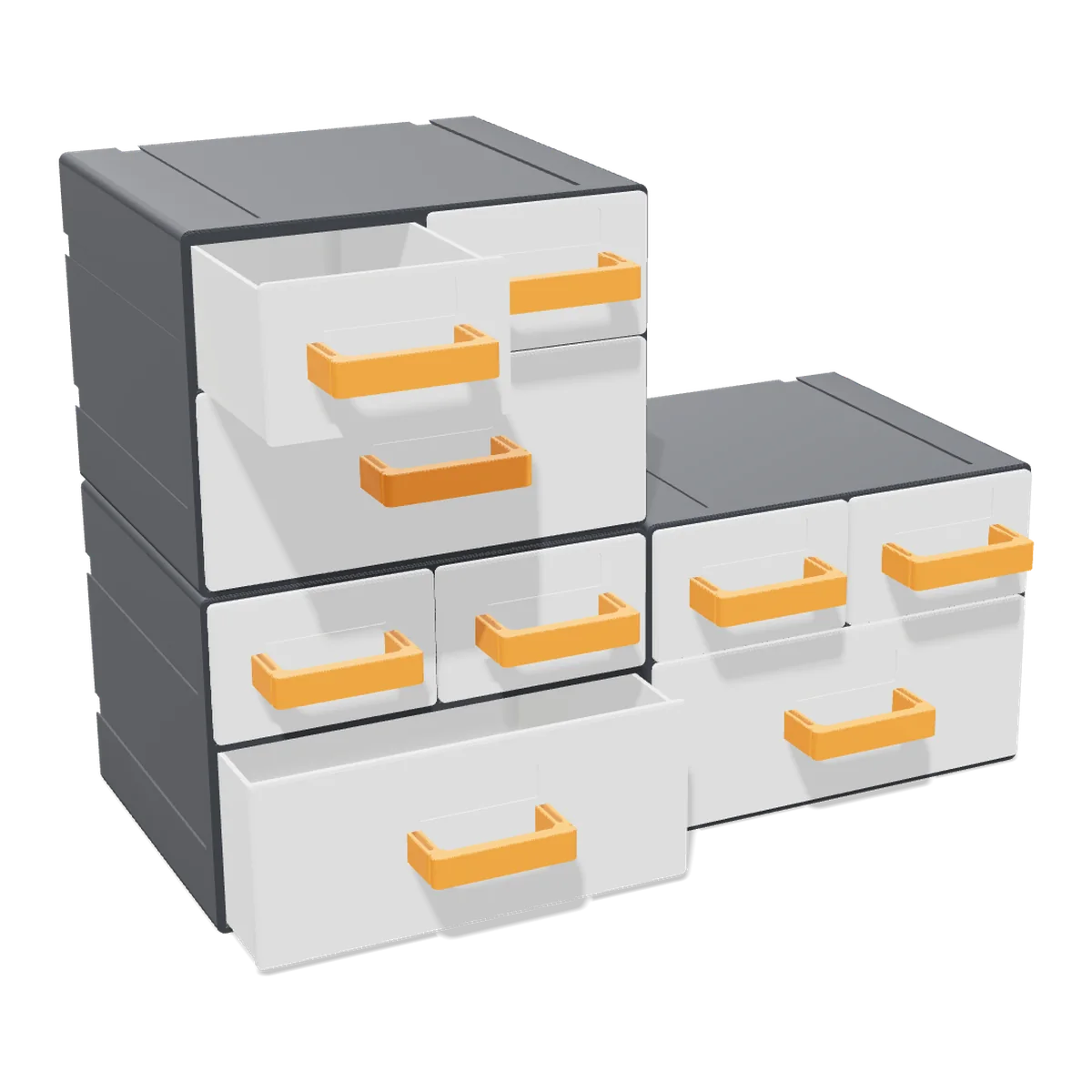

Join more cabinets

Line up two cabinets on top of each other or side by side and slide two link keys into the matching slots from the back until they stop.

Taking a drawer out

Pull the drawer to its stop, push the nub up with a fingertip from inside the drawer and pull the drawer past it.
