3D render of the stand: a white base with an orange back support, holding a phone
Free 3D model

Phone & Tablet Stand

A sturdy stand for a phone or a tablet, upright or sideways. The back support plugs into one of three pairs of sockets for about 55, 65 or 75 degrees, the lip holds a device in a case up to 15 mm thick, and a slot through the lip lets you charge while it stands. The deep foot keeps even a 13-inch tablet steady. Two parts, no screws, no supports.

  • 2printed parts
  • 14 × 11 × 12 cmassembled (L × W × H)
  • ≈ 0.1 kgfilament in total
  • 140 mmbed size needed; both parts print flat
Download all files ZIP · 0.4 MB

Free for personal use under CC BY-NC 4.0: print it, remix it and share it with credit to Shapekit. Please don't sell the files or the prints.

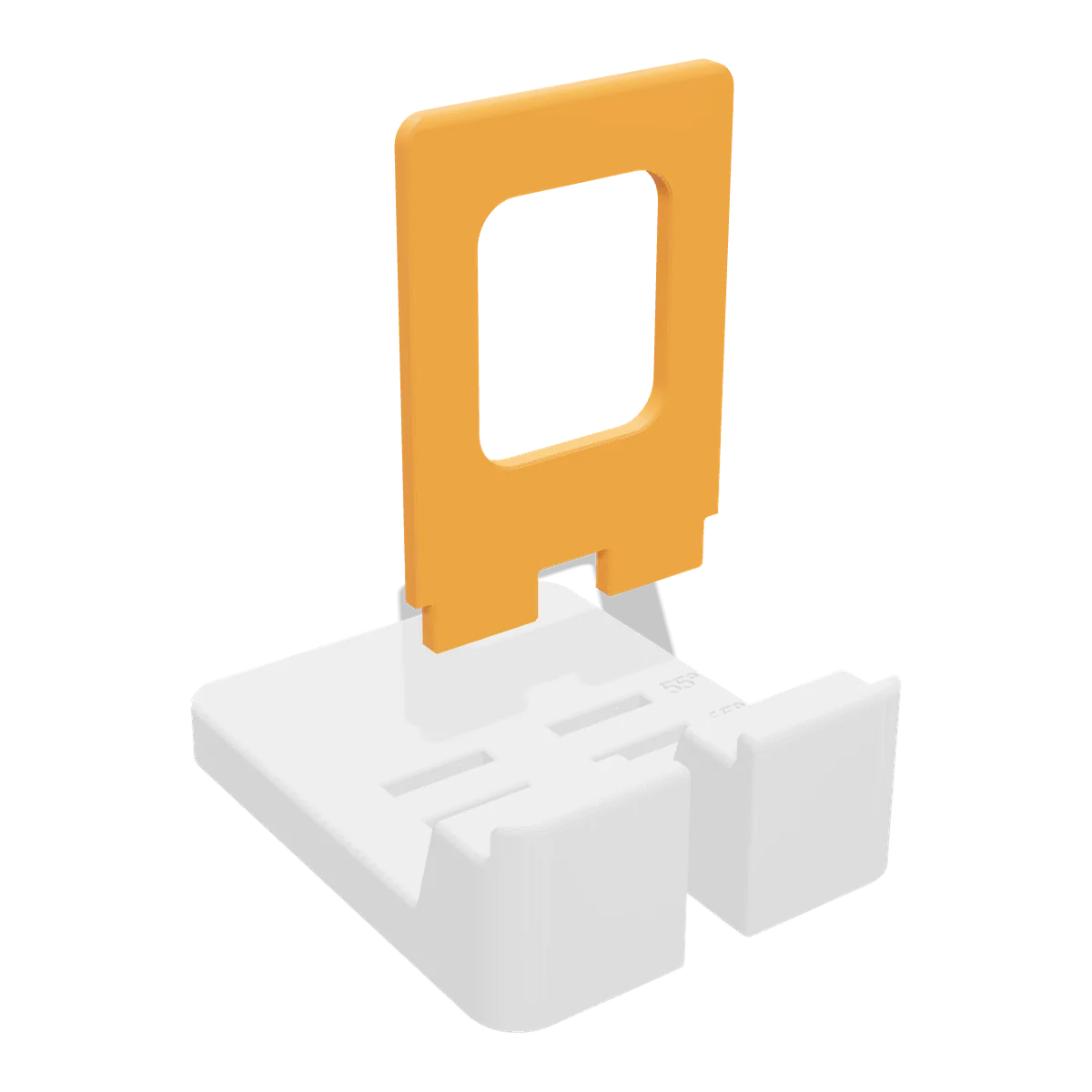

Take it apart in 3D · Parts · How to build it

In 3D

Turn it, take it apart

Every part as you print it. Pick colours to see what your filament will look like.

The 3D model (1.5 MB) loads when you get here.

Preview colours

Base
Back support

Drag to rotate · scroll or pinch to zoom

In the download

2 parts, ready to print

Every STL is already placed the right way up. Download them all at once, or one by one.

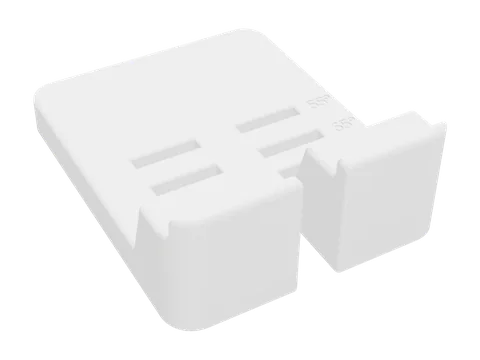

Base

The foot with the lip, a slot for the charging plug, three pairs of sockets marked 75°, 65° and 55°, a groove underneath that takes the cable to the back, and recesses for four rubber feet.

Size
139 × 110 × 48 mm
Print
Flat on its bottom. No supports: the cable groove and the foot recesses bridge over.
Filament
≈ 118 g
STL 1.3 MB

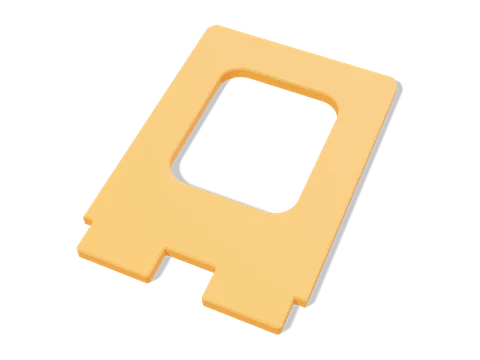

Back support

Plugs into the base with two prongs; small ribs in the sockets hold it without wobbling. The device leans on its rounded top edge.

Size
116 × 80 × 5 mm
Print
Flat, front face up. No supports.
Filament
≈ 25 g
STL 0.2 MB
Also needed

Parts you buy

  • Nothing else: no screws, no glue.
  • Optional: four self-adhesive rubber bumpers, 10 mm across, for the recesses under the base.
  • To charge while it stands: a USB-C or Lightning cable whose plug and strain relief together are up to about 27 mm long (most are 20 to 27 mm). A longer one works too if you lead the cable out at the front.
Print settings

Slicer settings

0.20 mmlayer height
3walls
15%gyroid infill
PLA or PETGmaterial

For a 0.4 mm nozzle. Filament amounts are estimates for these settings.

Assembly

How to build it

Print the parts

Both parts print flat without supports. Give the base 4 walls and 25% infill: at about 200 g it stays put when you tap a 13-inch tablet.

Add feet

Optional: press four rubber bumpers into the round recesses under the base, so the stand doesn't slide.

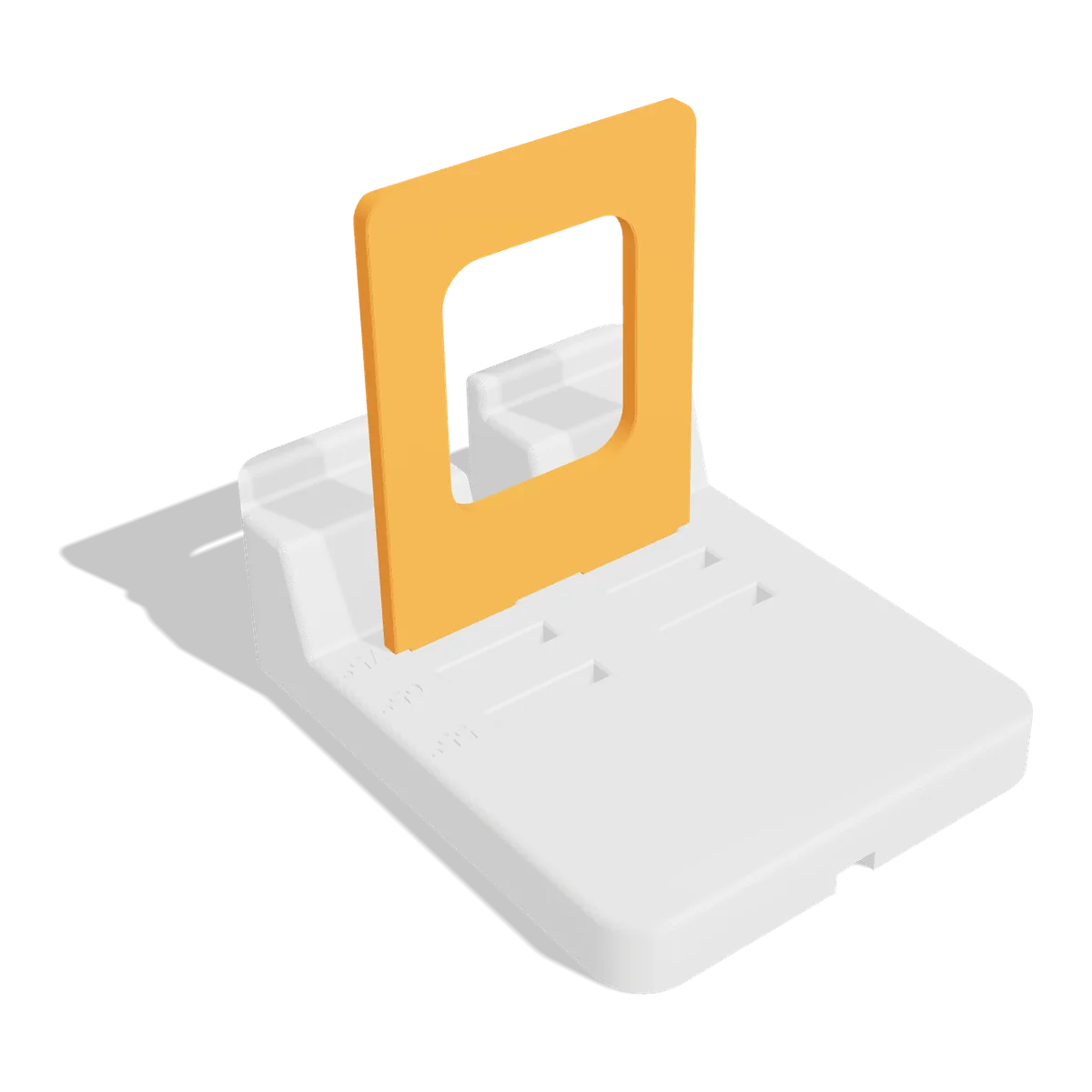

Choose an angle

Push the prongs of the back support into one pair of sockets until it sits on the base: 75° at the front is the most upright, 55° at the back the flattest.

Seat the support

The first time, push firmly. Small ribs in the sockets squash a little and then hold the support without play.

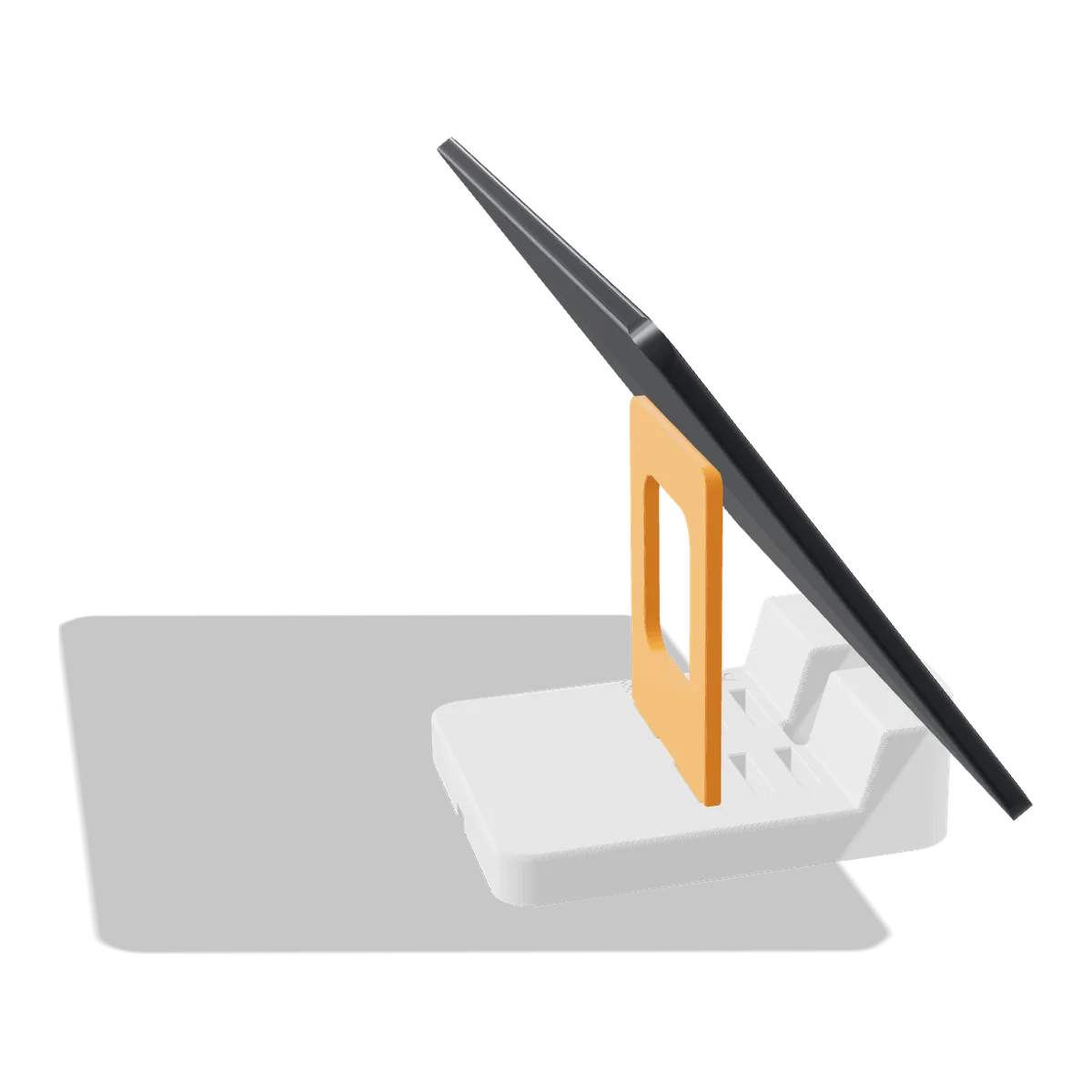

Stand your device

Put your phone or tablet on the ledge behind the lip, screen forward, and lean it back against the support. A thick case makes it stand up to 3 degrees steeper. A 13-inch tablet standing upright (portrait) is steadiest at 65 or 75 degrees.

Charge it

Put the cable through the slot in the lip and plug it in, let it bend down behind the lip and lead it back through the groove under the base.
